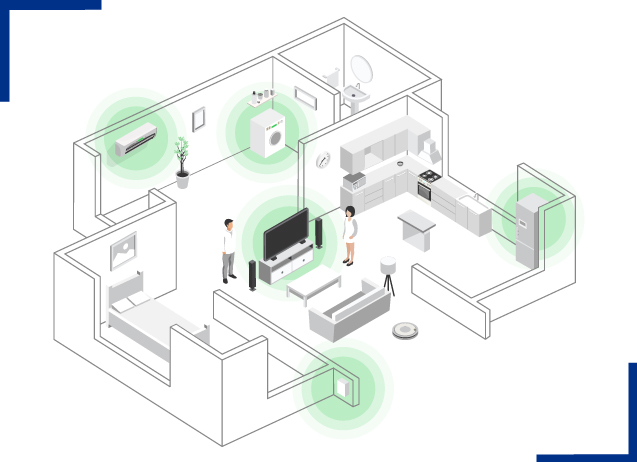

Protection for your entire home. Conventional suppressors only serve to protect a few appliances, our industrial-grade Kleinstad Surge Arrester helps you protect your whole home.
Special surge suppressor for electrical protection of equipment or installations. Phase-to-phase, phase-to-neutral, phase-to-ground, and neutral-to-ground configurations are available in 1 to 10 protection modes.
The Kleinstad Surge Suppressor is the only thing you need to protect all the electronic devices in your home or business from harmful voltage spikes.
It protects permanently by employing suppressor modules with the ability to cut excessive voltage and overvoltage. Easy installation, it is installed at the beginning of the power line quickly and easily, in voltage ranges from 150 to 220V.
Application
Preventive protection of all types of equipment or even complete installations against voltage spikes which are reflected in damage to electrical but mainly electronic components.
Use
Domestic, commercial, and industrial.
Main Features
- High efficiency in voltage spike filtering.
- Different optional protection levels: varistor-capacitor arrays and gas capsules.
- Compact, robust, and industrial quality.
- For severe voltage conditions.
- High tolerance to electrical noise, reliable operation even in critical industrial environments.
- High-quality components and raw materials.
- Low power consumption.
- High operational safety.
- Robust cabinet in high mechanical resistance steel sheet, compact design, and electrostatic paint finish.
- UL or NOM-certified components.
- NOM-03 certification.
- ISO-9001 certification.
Operation
- Permanently protects your equipment or installation by preventing power line problems utilizing surge suppressor modules with the capacity to cut excessive voltage up to an upper limit, thus protecting equipment from damage due to overvoltage.
- Single-phase, two-phase, or three-phase system (MV cabinet).
- Single-phase system (independent cartridge).
- LED indicators per cartridge or phase
- Green LED: indicates that the surge suppressor is on and operating.
Technical specifications
- Power factor: depends on the load.
- Minimum response time: 3 cycles.
- Operating temperature: 0-65°C at full load for 60 minutes.
Environmental specifications
- Operating temperature: 0-50ºC.
- Maximum operating altitude: 2500m above sea level
- Relative humidity: <93% non-condensing.
Insulation
Autotransformer impregnated in high vacuum and baked with class "H" dielectric varnish with a dielectric strength of 4,884V/mm (ASTM-D-115-55) dry and 3,030V/mm wet (salt chamber). Each product is insulation tested to 1,250Vac.
Complies with HiPot test at 1,250Vac.
Note: Typical operating ranges depend on each model.

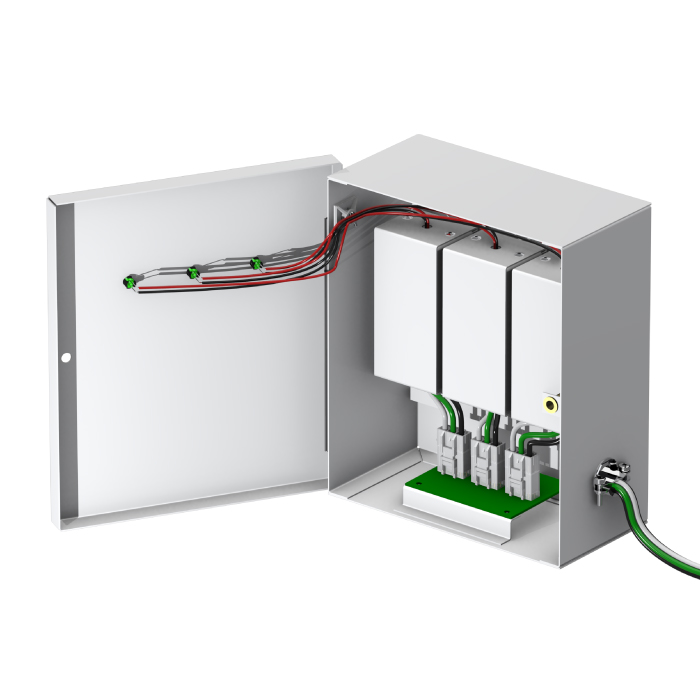

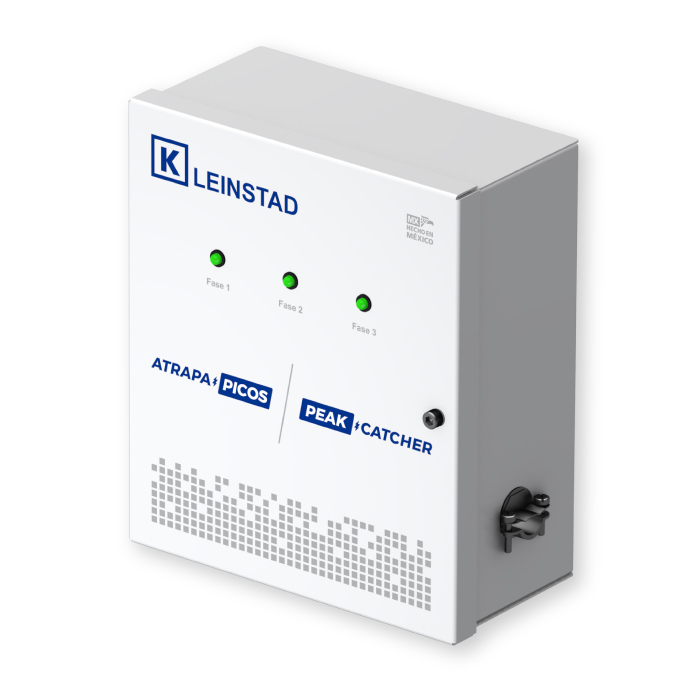

Single-phase, two-phase, or three-phase system (MV cabinet)

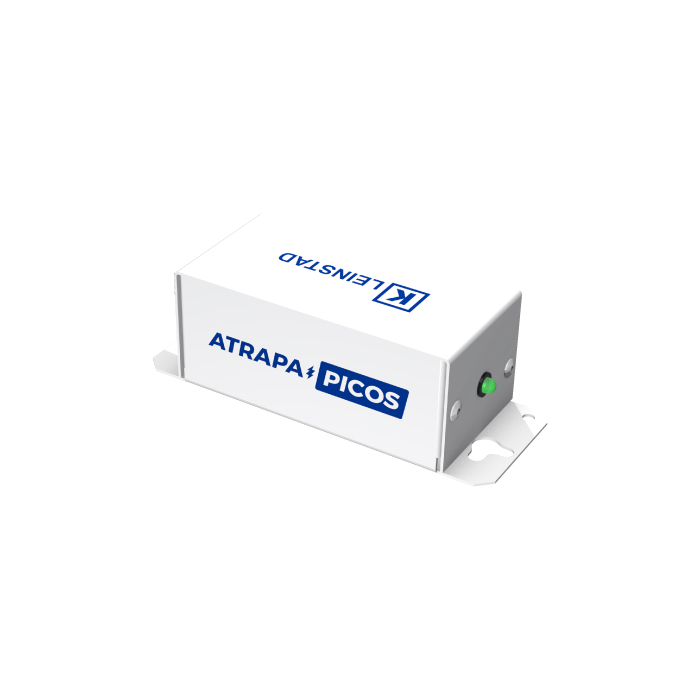

Single-phase system (independent cartridge)
Voltages: 120V a.c. and 220V a.c.
Power ratings: 2258J-L, 4515J-L, 6773J-L, 9030J-L, APK-120-T-MV and specials.
Frequency: 50/60Hz
We also manufacture special designs according to your specifications.
WHY USE PROTECTION SYSTEMS?

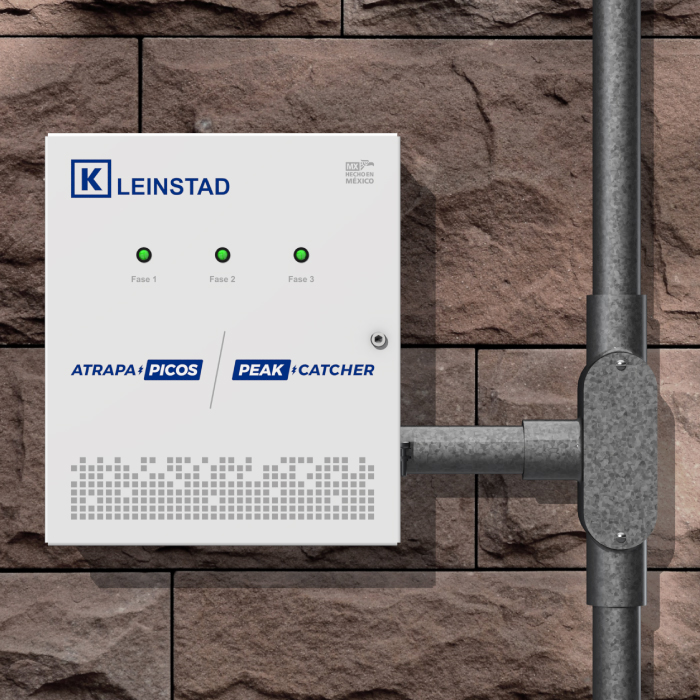

- It protects the electronic devices of an entire residence or business because it is installed at the beginning of the power line.
- Total protection, it protects permanently by employing suppressor modules with the capacity to cut excessive voltage and overvoltage.
- Protects all your equipment with a single device.
- The industrial grade helps to protect your entire home.
- Easy installation, installs at the beginning of the power line quickly and easily.
Given the voltage conditions in Latin America, integrating Kleinstad protection equipment is essential to achieve rational energy consumption, regardless of protection issues to the equipment.
