KLEINSTAD

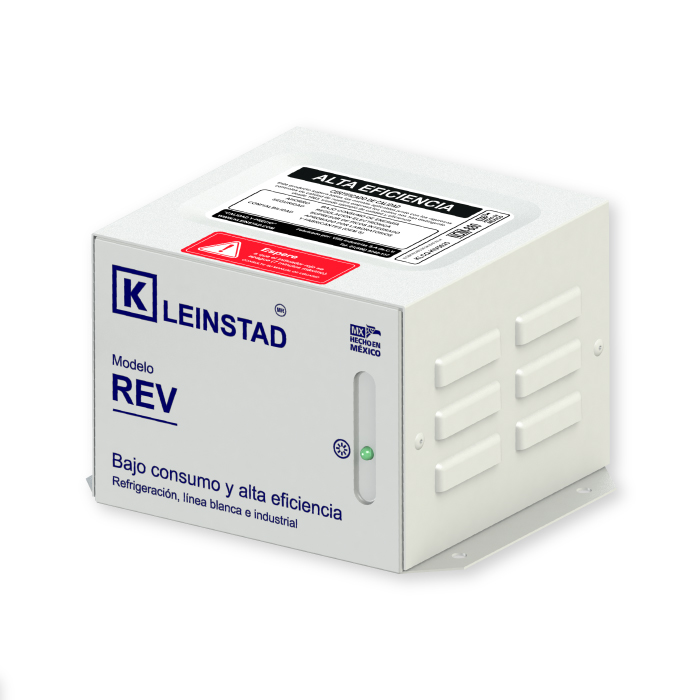

REV REGULATOR

Electronic voltage regulator without cuts or delay

Buy on

Electronic voltage regulator for high and low voltages without cut-off or delay.

Application

Protects from voltage variations in refrigeration equipment, white line, air conditioning, motors, pumps, and electrical appliances that consume high amperage either at start-up or at a constant level.

Use

Domestic, commercial, and industrial.

Main Features

Integral protection against a wide variety of electrical problems.
High reliability and energy efficiency.
Compact, robust, and industrial quality.
For severe voltage conditions.
High tolerance to electrical noise, reliable operation even in critical industrial environments.
High-quality components and raw materials.
Low power consumption.
High operational safety.
Robust cabinet in high mechanical resistance steel sheet, compact design, and electrostatic paint finish.
UL or NOM-certified components.
ISO-9001 certification.
NOM-03 certification.

Nominal voltage Vac	Frequency Hz	Operating range Vac	Output range Vac	Line length Centimeters
120	60	83-142	96-128	180
220	50/60	164-260	186-239	180

Operation

Regulates eventual or permanent high and low voltages.
LED indicator:
Green Led: indicates that the regulator is on.

Technical specifications

Power factor: depends on the load.
Minimum response time: 3 cycles.
Operating temperature: 0-65°C at full load for 60 minutes.

Environmental specifications

Operating temperature: 0-50ºC.
Maximum operating altitude: 2500m above sea level
Relative humidity: <93% non-condensing.

Insulation

High vacuum-impregnated autotransformer baked with class "H" dielectric varnish with a dielectric strength of 4,884V/mm (ASTM-D-115-55) dry and 3,030V/mm wet (salt chamber). Each product is insulation tested at 1,250Vac.

Complies with HiPot test at 1,250Vac.

Note: Typical operating ranges depend on each model.

Voltages: 120V c.a.
Elevations 120V: 15% and specials
Power ratings: 250, 500, 750, 1,000, 1,500, 1,500, 1,750, 2,000, 2,500W and specials
Frequency: 50/60Hz
Input: 3-wire line with NEMA 6-15P plug (up to 1,750W) and NEMA L6-20P (up to 2,500W).
Output: NEMA 5-15R outlet (up to 750W), universal contact (up to 1,750W), or L6-20R outlet (up to 2,500W).
We also manufacture special designs according to your specifications.

WHY USE PROTECTION SYSTEMS?

More than 65% of equipment failures are caused directly or indirectly by power supply deficiencies.
Ensures safety: Surge protection mitigates risk and sudden failures, ensuring reliable operation.
Increases service life: Protecting against surges, prevents certain incidents, thus extending the service life of equipment.

Given the voltage conditions in Latin America, integrating Kleinstad brand protection equipment is essential to achieve rational energy consumption, regardless of equipment protection issues.
