KLEINSTAD

RE-ELEVA COMPENSATOR

Electronic voltage compensator (motoprotector)

Buy

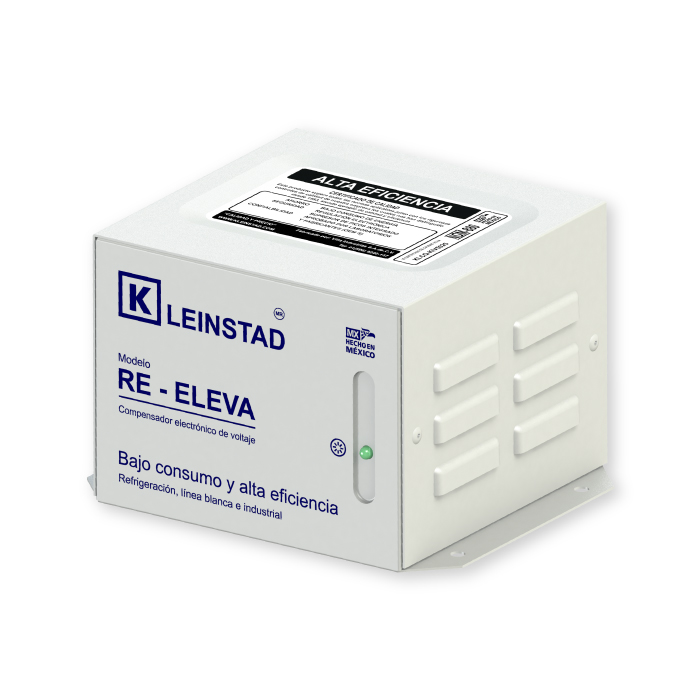

Compensador electrónico de voltaje Motoprotector Kleinstad RE-ELEVA

Electronic voltage compensator (motoprotector) for low voltages.

Application

Specially designed for the protection of refrigeration equipment, white line, air conditioning, motors, pumps, and electrical appliances that consume high amperage either at start-up or at a constant level. Commonly used in conditions where only voltage compensation is needed when the line is low.

Use

Commercial and industrial.

Main Features

Integral protection against a wide variety of electrical problems.
High reliability and energy efficiency.
Compact, robust, and industrial quality.
For severe voltage conditions.
High tolerance to electrical noise, reliable operation even in critical industrial environments.
High-quality components and raw materials.
Low power consumption.
High operational safety.
Robust cabinet in high mechanical resistance steel sheet, compact design, and electrostatic paint finish.
UL or NOM-certified components.
NOM-03 certification.
ISO-9001 certification.

Nominal voltage Vac	Frequency Hz	Operating range Vac	Output range Vac	Line length Centimeters
120	60	83-142	96-142	180
220	50/60	182-242	201-242	180

Operation

Compensates for eventual or permanent low voltages.
LED indicator:
Green Led: indicates that the equipment is on.

Technical specifications

Power factor: depends on the load.
Minimum response time: 3 cycles.
Operating temperature: 0-65°C at full load for 60 minutes.

Environmental specifications

Operating temperature: 0-50ºC.
Maximum operating altitude: 2500m above sea level
Relative humidity: <93% non-condensing.

Insulation

Autotransformer impregnated in high vacuum and baked with class "H" dielectric varnish with a dielectric strength of 4,884V/mm (ASTM-D-115-55) dry and 3,030V/mm wet (salt chamber). Each product is insulation tested to 1,250Vac.

Complies with HiPot test at 1,250Vac.

Note: Typical operating ranges depend on each model.

Voltages: 120V a.c.
120V elevations: 15% and specials
Powers: 500, 750, 1,000, 1,500, 1,750, 2,000, 2,500, and specials.
Frequency: 50/60Hz
Input: 3-wire line with NEMA 5-15P (500W to 2,000W) or NEMA 5-20P (2,500W) plug.
Output: NEMA 5-15R (500W to 2,000W) or NEMA 5-20R (2,500W) outlet Faston termination.
We also manufacture special designs according to your specifications.

WHY USE PROTECTION SYSTEMS?

Commonly used in conditions where only voltage compensation is needed when the line is low.
Low power consumption.
High reliability and fast installation.
Highly efficient and reliable electrical and electronic design.

Given the voltage conditions in Latin America, integrating Kleinstad protection equipment is essential to achieve rational energy consumption, regardless of protection issues to the equipment.
