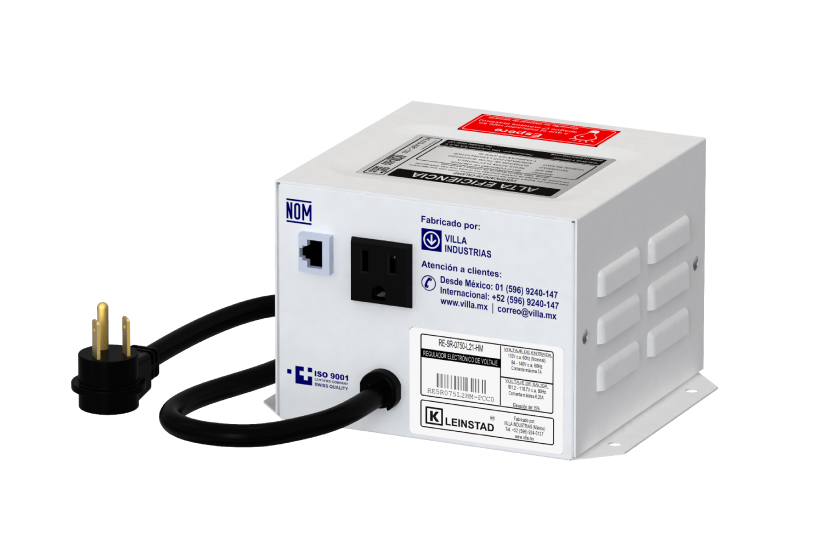

VOLTAGE REGULATORS

Operation

• Regulates eventual or permanent high and low voltages, cuts off supply when line voltage is too high, too low, or when power suddenly goes off and comes back on.
• It cuts off the output voltage until the line voltage is within the operating range, giving a time delay of 2 to 5 minutes or 5 to 15 seconds (approximately, programmable on request).
• Voltage spike suppression.

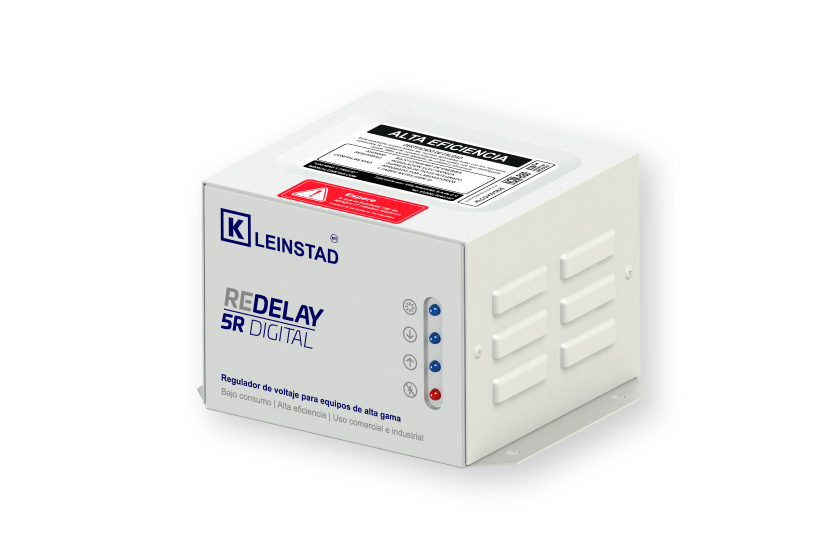

• LED indicators:
• Green Led (1): indicates that the regulator is on.
• Yellow LED (2): lights up when the device is regulating high voltages.
• Yellow LED (3): lights up when the device is regulating low voltages.
• Red Led (4): shows that the device is in Delay/Wait which shows that the line voltage is out of the operating range.

Event Logging

While the equipment is connected to the power line, it will have the event log function, which consists of a list that the regulator will keep autonomously to record the total hours of operation, the total hours of high, low, or transparent voltage regulation, the total hours of high and low voltage cut-off, as well as the total number of times that the equipment changed between each event, among other functions.

Technical specifications

• Power factor: depends on the load.
• Minimum response time: 3 to 6 cycles.
• Operating temperature: 0-65°C at full load for 60 minutes.

Environmental specifications

• Operating temperature: 0-50ºC.
• Maximum operating altitude: 2500m above sea level
• Relative humidity: <93% non-condensing.

Isolation

Autotransformer impregnated in high vacuum and baked with Class H dielectric varnish with dielectric strength of 4,884V/mm (ASTM-D- 115-55) dry and 3,030V/mm wet (salt chamber). Each product tests its insulation at 1,250Vac.

Complies with HiPot test at 1,250Vac

Note: Typical operating ranges vary by model.
