KLEINSTAD

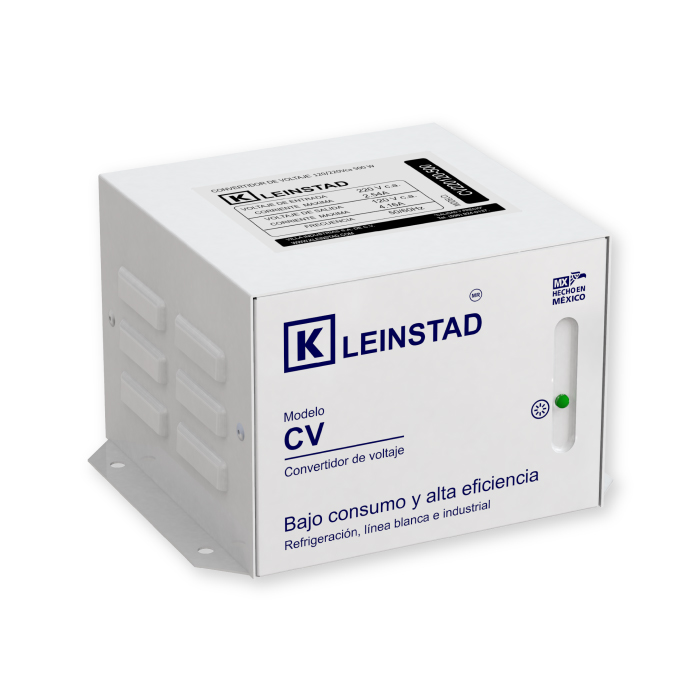

CV CONVERTER

Voltage converter

Buy on

Voltage converters from 120 to 220Vac and from 220 to 120Vac 60Hz.

Application

This family of converters is recommended when there are no variations in the supply voltage.

Use

Domestic, commercial, and industrial.

Main Features

Integral protection against a wide variety of electrical problems.
High reliability and energy efficiency.
Compact, robust, and industrial quality.
For severe voltage conditions.
High tolerance to electrical noise, reliable operation even in critical industrial environments.
High-quality components and raw materials.
Low power consumption.
High operational safety.
Robust cabinet in high mechanical resistance steel sheet, compact design, and electrostatic paint finish.
UL or NOM-certified components.
NOM-03 certification.
ISO-9001 certification.

Nominal voltage Vac	Frequency Hz	Operating range Vac	Output range Vac	Line length Centimeters
120	60	120	220	180
220	60	220	120	180

Operation

Converts line voltage from 120 to 220Vac or 220 to 120Vac 60Hz.
LED indicator:
Green LED: indicates that the equipment is on.

Technical specifications

Power factor: depends on the load.
Minimum response time: 3 cycles.
Operating temperature: 0-65°C at full load for 60 minutes.

Environmental specifications

Operating temperature: 0-50ºC.
Maximum operating altitude: 2500m above sea level
Relative humidity: <93% non-condensing.

Insulation

Autotransformer impregnated in high vacuum and baked with class "H" dielectric varnish with a dielectric strength of 4,884V/mm (ASTM-D-115-55) dry and 3,030V/mm wet (salt chamber). Each product is insulation tested to 1,250Vac.

Complies with HiPot test at 1,250Vac.

Note: Typical operating ranges depend on each model.

Voltages: 220V a.c. to 120V a.c. and 120V a.c. to 220V a.c.
Powers: 250, 500, 1,000, 1,500, 1,500, 1,750, 2,000, 2,500, 3,000, 5,000 and special.
Frequency: 60Hz
Input: 3-wire line with NEMA 6-15P plug (up to 1,750W) and NEMA L6-20P (up to 2,500W).
Output: NEMA 5-15R outlet (up to 750W), universal contact (up to 1,750W), or L6-20R outlet (up to 2,500W).
We also manufacture special designs according to your specifications.
