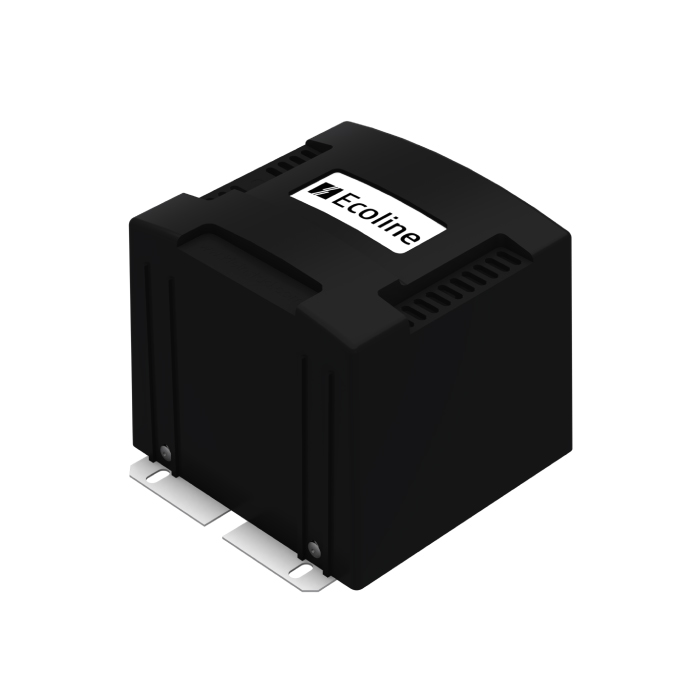

The following are available in OEM (original equipment manufacturer) versions: voltage regulator without cut-off and delay ERV, voltage regulator ERD, and voltage compensator (motor-protector) EMP.
Application
For original equipment manufacturers requiring custom specifications.
Use
Commercial and industrial.
Main Features
- Integral protection against a wide variety of electrical problems.
- High reliability and energy efficiency.
- Compact, robust, and industrial quality.
- For severe voltage conditions.
- High tolerance to electrical noise, reliable operation even in critical industrial environments.
- High-quality components and raw materials.
- Low power consumption.
- High operational safety.
- This robust cabinet is made of a high mechanical resistance steel sheet, has a compact design, and has an electrostatic paint finish.
- UL or NOM-certified components.
- NOM-03 certification.
- ISO-9001 certification.
- Available versions for medical equipment.
Operating range
Various operating ranges depending on equipment and model.
Environmental specifications
- Operating temperature: 0-50ºC.
- Maximum operating altitude: 2500m above sea level
- Relative humidity: <93% non-condensing.
Isolation
Autotransformer impregnated in high vacuum and baked with Class H dielectric varnish with dielectric strength of 4,884V/mm (ASTM-D- 115-55) dry and 3,030V/mm wet (salt chamber). Each product tests its insulation at 1,250Vac.
Complies with HiPot test at 1,250Vac
Note: Typical operating ranges vary by model.
Voltages: 120V a.c.
Elevations: 21% and specials.
Powers: 500, 750, 1,000, 1,500 and 2,000 and specials.
Frequency: 60Hz
We also manufacture special designs according to your specifications.
